Description

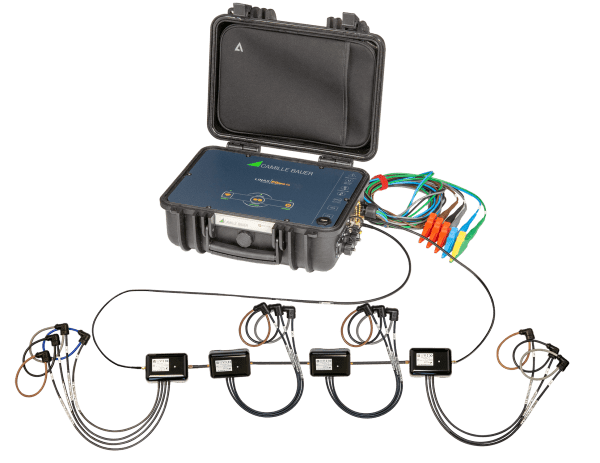

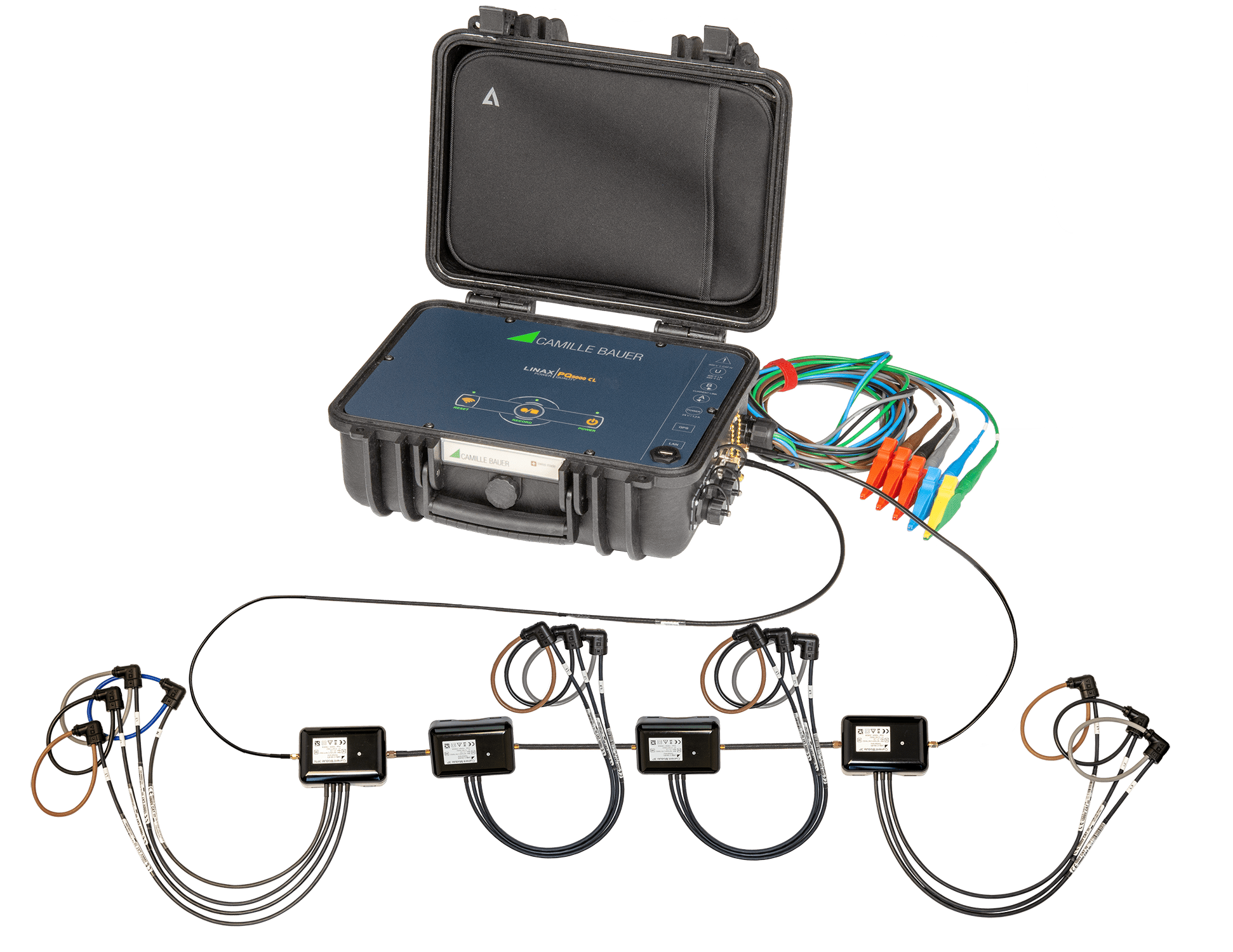

• Portable PQI multichannel meter according to IEC 61000-4-30 Ed. 3 of class A
• Comprehensive PQ analysis for all voltages and currents
• Metrological certification IEC 61000-4-30 by METAS according to IEC 62586-2
• Integrated WebGUI as HMI, incl. comprehensive cyber protection
• Hard case with IP65 with closed housing
• Power supply 100 up to 230V AC via mains adapter 300V CAT IV
• Nominal frequency 42…50…58 Hz
• Safety requirement 600V CAT IV (measuring inputs current & voltage)
• 64GB SD memory

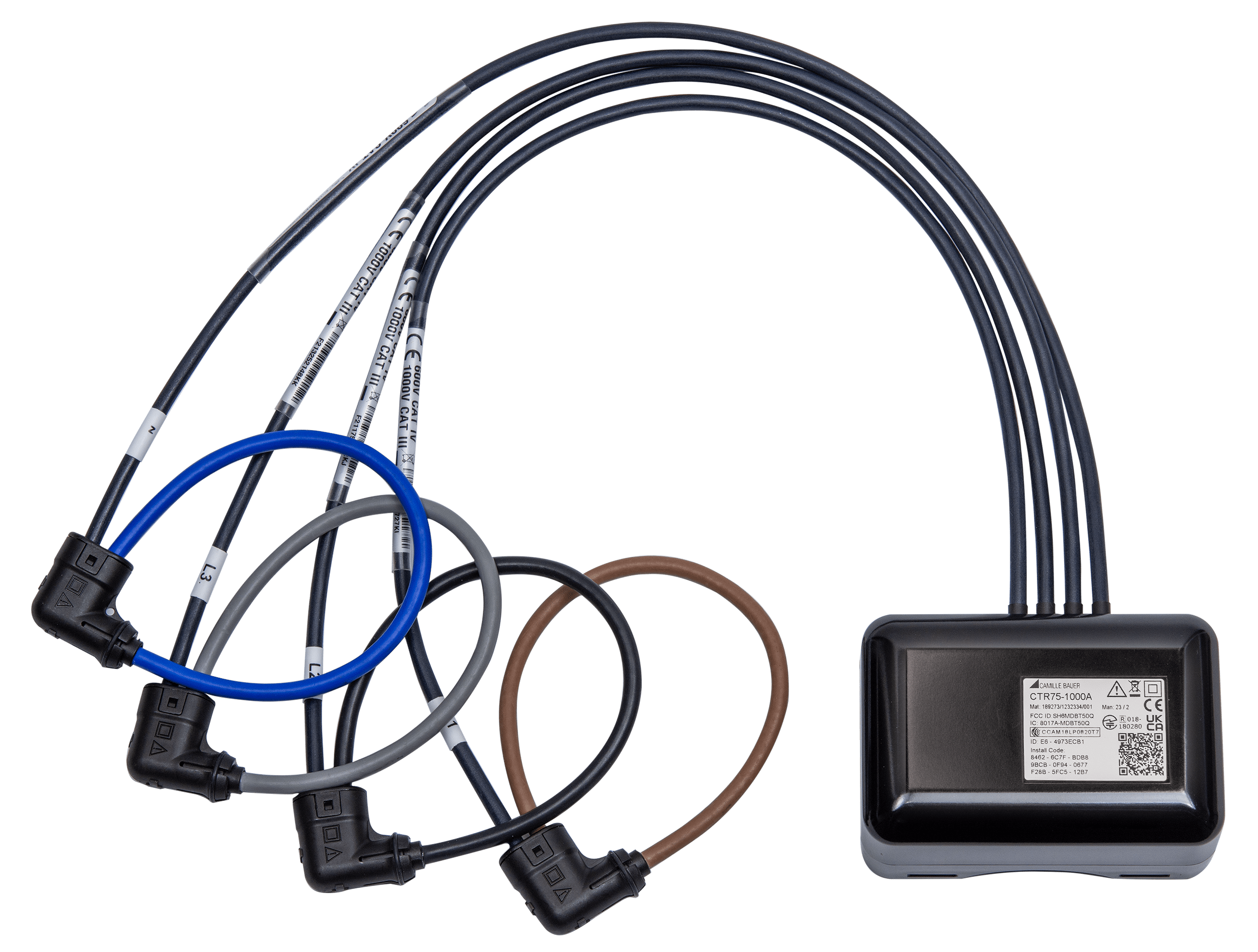

• Maximum of 36 current measurement inputs per device (9 x L1/L2/L3/N)
• 1 x voltage tap L1/L2/L3/N/PE by means of voltage measuring leads
• Fault recorder for current and voltage events: RMS½ values of all voltages and up to 36 currents as well as waveform recordings of the voltages
• Incident recording up to 3 minutes after the event
• Display and evaluation via WEB interface of the device
• Event list with trigger source, event type, event duration and characteristic event values
• Zoom options & data points for on-site analysis
• Comprehensive load profile recording
• Time synchronization via NTP server or GPS
• Data export via CSV or PQDIF files
• Current values are time synchronized to voltage (IEC 61000-4-30)
• UPS on capacitor basis (min. 30 seconds bridging)
• Data protocols: http, https, IPv4, IPv6, NTP, REST API
• Data communication via LAN or WLAN access point to various end devices
• Evaluation via PQIS^® software possible
